Description:

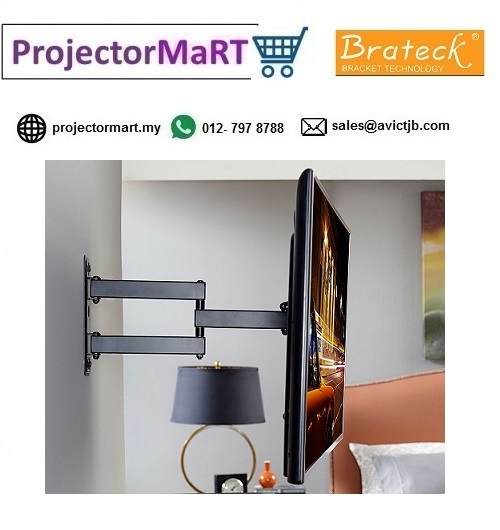

The LDA21-223 is a full-motion wall mount for most 13''-42'' LED, LCD flat panel TVs up to 20Kgs/44lbs. It allows smooth, effortless tilt motion that makes it easy to reduce glare and find the perfect TV angle at any height. Full motion allows maximum flexibility — extend, tilt and swivel your TV up to 360mm from the wall in every direction for easy viewing from any seat in a room. This pre-assembled arm comes complete with cable clips and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 200x200.
Specification:
| Product Name: | TV wall mount |
| By Rank: | Economy Series |
| By Function: | Full motion |
| By Mounting Pattern: | Standard VESA |
| Material: | Steel, Plastic,Metal |
| Thickness: | Wall Panel 2.5mm?connection 2mm (Wall Panel 0.098"?connection 0.079") |
| Pipe Size: | 30x15x1.5mm,25x15x1.5mm (1.2"x0.59"x0.059",0.98"x0.59"x0.059") |
| Surface Finish: | Powder coating |
| Available Color: | Black |
| Product Size With Open Position: | 364x220x220mm (14.3"x8.7"x8.7") |
| Fit Screen Size: | 13"-42" |
| Installation: | Solid wall, Single Stud |
| Rated Load: | 20kg (44lbs) |
| Strength tested: | 2 times approved |
| Max.Hole Pattern: | 200x200 |
| VESA: | 75x75,100x100,200x100,200x200 |
| Tilt: | +5°~-12° |
| Swivel: | +90°~-90° |
| Level Adjustment: | +3°~-3° |
| Profile: | 60-364mm (2.4"-14.3") |
| Bubble Level: | No |
| Anti-theft: | No |
| Cable Management: | Yes |
| Wall separated: | No |
| Panel separated: | Yes |
| AV Component Mount: | No |
| Freely Tilting: | Yes |
| Motorized: | No |
| User Manual : | Yes |
