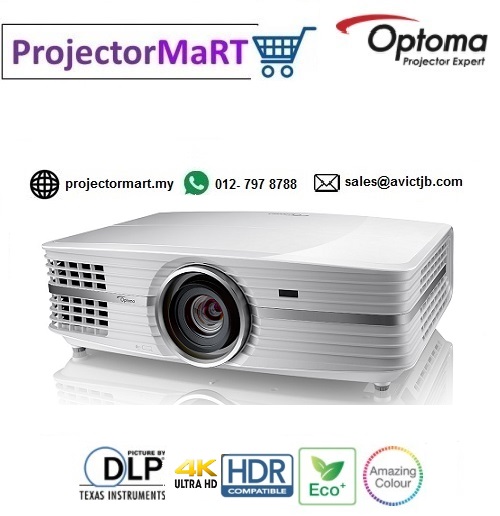

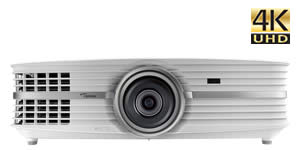

UHD60
4K ULTRA HIGH DEFINITION HOME THEATER PROJECTOR
The UHD60 is a state-of-the-art true 4K Ultra High Definition (UHD) projector for home theater capable of delivering ultra sharp images with a high level of detail and astounding color. With 4 times the pixels of 1080p, a resolution of 3840x2160, 3000 lumens, and 1,000,000:1 contrast ratio, the UHD60 delivers breath-taking and vivid picture quality. Offering High Dynamic Range in the form of HDR10, vertical lens shift and a 1.6x Zoom, and an HDMI 2.0 port with Full 18Gbps, the UHD60 has been engineered to deliver the ultimate true 4K UHD home viewing experience. The UHD60 is powered by a revolutionary Texas Instruments 4K DLP UHD chipset with a high performance DMD. This utilizes XPR video processing technology with fast switching to display 8.3 million distinct pixels as mandated by the Consumer Technology Association’s 4K UHD 2160p specification.

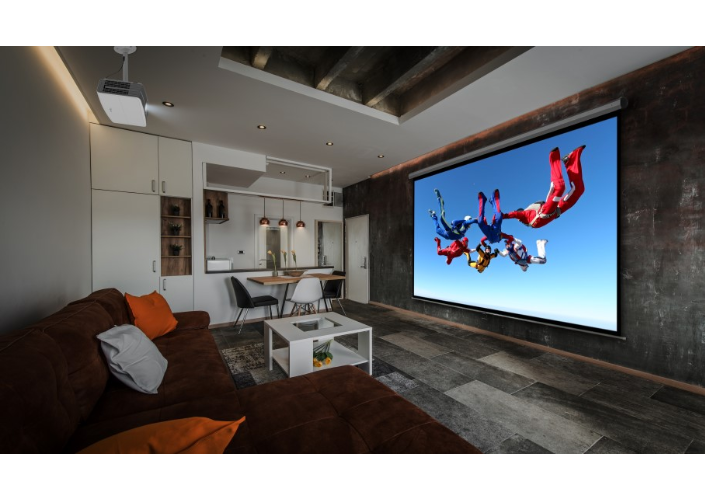

The UHD60 can project 4K UHD images up to 140 inches, allowing viewers to sit as far as 10 feet away and still enjoy all 4K UHD pixels. The average 55-75 inch 4K UHD TV simply cannot match this, as viewers typically sit further away from their TV than the optimum viewing area of 5-6 feet. High Dynamic Range, also known as HDR, is the true star of the 4K UHD show. HDR leverages REC.2020 wide color gamut and DCI-P3 color gamut coverage to deliver super luminous levels of white, the deepest black levels, and life-like real world color that was previously only possible in the cinema.
The UHD60 can project 4K UHD images up to 140 inches, allowing viewers to sit as far as 10 feet away and still enjoy all 4K UHD pixels. The average 55-75 inch 4K UHD TV simply cannot match this, as viewers typically sit further away from their TV than the optimum viewing area of 5-6 feet. High Dynamic Range, also known as HDR, is the true star of the 4K UHD show. HDR leverages REC.2020 wide color gamut and DCI-P3 color gamut coverage to deliver super luminous levels of white, the deepest black levels, and life-like real world color that was previously only possible in the cinema.
A 15% vertical lens shift and a 1.6x optical zoom provide a great deal of flexibility in terms of installation location, while dual 4 watt stereo speakers generate audio that is loud and crisp. The lamp life on the UHD60 is a robust 10,000 hours in ECO mode and 15,000 hours in Dynamic mode.
Specification
| Display Technology | DLP |
| Native Resolution | UHD (3840x2160) |
| Brightness | 3000 ANSI Lumens |
| Contrast Ratio | Up to 1,000,000:1 with Dynamic Black |
| Lamp Life2 Dynamic/Eco/Bright | 15000/10000/4000 (hrs) |
| Throw Ratio 3 | 1.39 - 2.22:1 (with tolerance +/- 5%) |
| Zoom Type | 1.6x Manual |
| Lens Shift | Vertical: +15% |
| I/O Connectors | 1xHDMI 1.4a, 1xHDMI 2.0 (w/ HDCP 2.2, MHL 2.1 and Full 18Gbps), VGA-In, Audio-In (3.5mm), Audio-Out, SPDIF Out (Optical), USB 2.0 Port (Service), USB-A Power, RJ45, RS232C, 12V Trigger |
| Speaker (Watts) | 2x4W Stereo Speakers |
| Audio | 2x4W Stereo speakers |
| Weight | 16 lbs (7.26 kg) |
| Dimensions (W x H x D) | 19.6” x 6” x 13” |
| Aspect Ratio | 16:9 (native), 4:3, Auto, LBX (2160p and 1080p) |
| Offset | 100% (see Vertical Lens Shift) |
| Projection Screen Size | 26.45" - 302.2" (0.67 - 7.68m) Diagonal 16:9 |
| Projection Distance | 4.2’ - 30.5’ |
| Projection Lens | F/2.5~3.26; f=20.91~32.62mm |
| Uniformity | 85% |
| Maximum Resolution | 4K 4096x2160 @ 60Hz with XPR Technology |
| Computer Compatibility | UHD, WQHD, WUXGA, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Compatibility | 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz), 2160p(24/50/60Hz) |
| Input Lag (ms) | 48 |
| Horizontal Scan Rate | 31K~135KHz |
| Vertical Scan Rate | 24~120 Hz |
| Displayable Colors | 1073.4 Million |
| Noise Level (Eco mode) | 25dB |
| Power Supply | AC input 100–220V, 50–60Hz, auto-switching |
| Power Consumption | 317W Typical (Bright mode), 348W Max (Bright mode), 259W Typical (Eco mode), 285W Max (Eco mode) |
| Lamp Type | 240W |
| Operating Conditions | 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m |
| Security | Security bar, Kensington lock |
| On Screen Display | 10 Languages: English, Español, Français, Deutsch, Português, Italiano, ???????, ????, ???, ??? |
| Remote Control | Full Function Home Remote Control |
| Standard Accessories | AC power cord, remote control, 2x AA batteries, Basic user manual |
| Optional Accessories | Ceiling mount |
| Optional Wireless | No |
| Warranty | 2 Years |
| RoHS | Compliant |
| Projection method | Front, rear, ceiling mount, table top |
| Warranty | 2 Year Limited Warranty/12 Month or 1000 Hours Lamp (Which ever comes first) |
